Spring Toggle Bolts

Multi Purpose

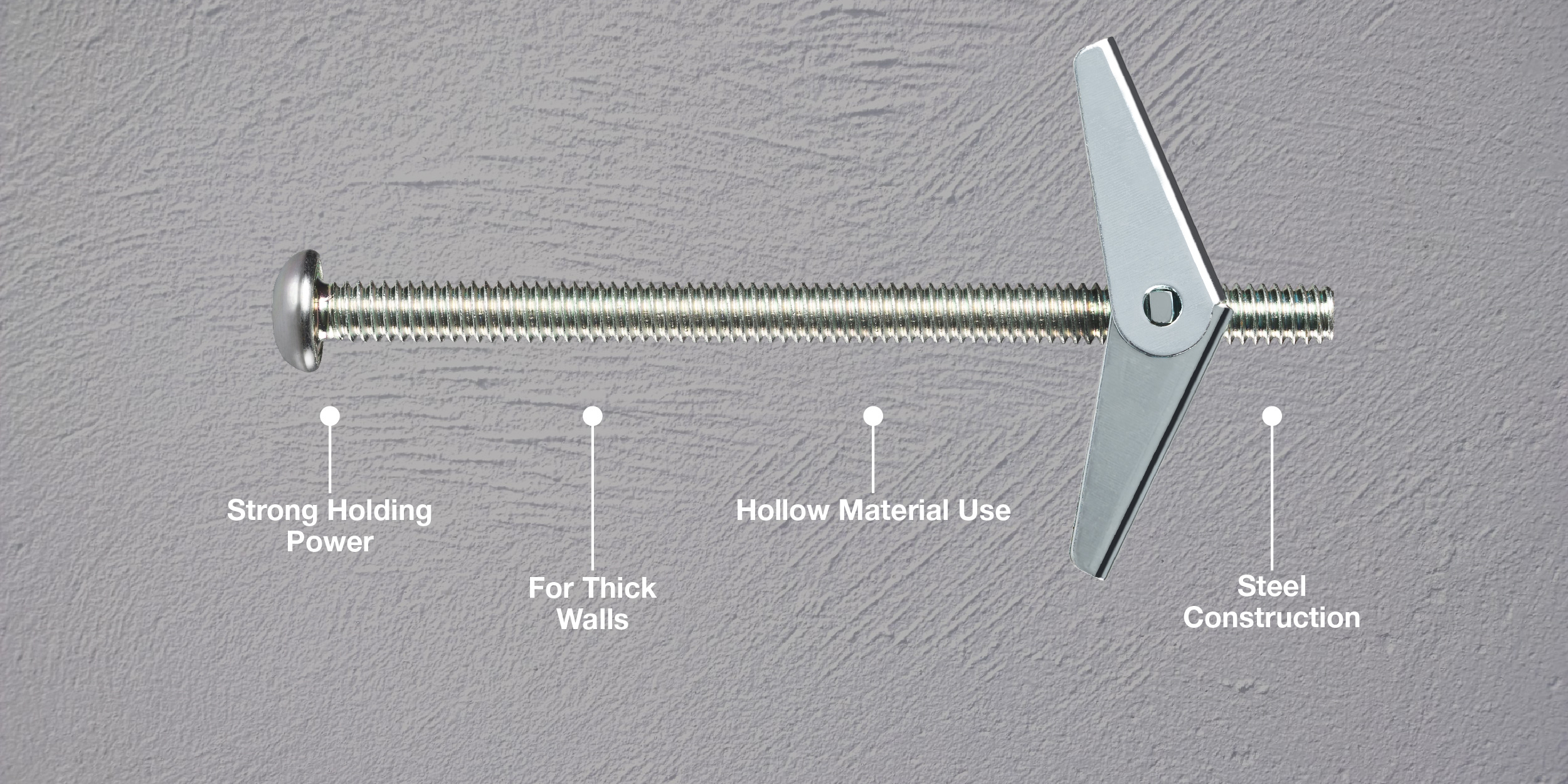

The Spring Toggle Bolt is a toggle anchor made of steel and is ideal for fixing heavy items to the wall or ceiling. It is offered in a variety of lengths to accommodate thicker material. The two metal wings are spring loaded and open behind the wall when inserted. Available in 20 sizes ranging from 1/8″ x 2″ to 3/8″ x 6″. For a faster result, and an easier way to install, try Cobra’s DrillerToggle®.

Specifications

Designed for thick wall application
Can be used in all type of hollow material
Strong holding power

Drywall1/2'

Drywall3/8'

Drywall5/8'

Hollow-Block

Plaster

Tile

Fire alarm
Kitchen cabinet
Exit sign
Bathroom medicine cabinet

brochures & catalogs

Installation
Videos

Installation
guides

Technical product specifications

Product variants

Open filters

39 variants listed

Product SKU & Description

Anchors per pack

Drill size

Min embedment

081M SPRING TOGGLE BOLTS 1/8" X 2" (X30)

1/2in / 13mm

Variant attributes

SKU

081M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

082M SPRING TOGGLE BOLTS 1/8" X 3" (X30)

1/2in / 13mm

Variant attributes

SKU

082M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

085M SPRING TOGGLE BOLTS 3/16" X 2" (X25)

1/2in / 13mm

Variant attributes

SKU

085M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

086M SPRING TOGGLE BOLTS 3/16" X 3" (X25)

1/2in / 13mm

Variant attributes

SKU

086M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

091M SPRING TOGGLE BOLTS 3/16" X 4" (X25)

1/2in / 13mm

Variant attributes

SKU

091M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

095M SPRING TOGGLE BOLTS 1/4" X 3" (X12)

3/4in / 19mm

Variant attributes

SKU

095M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

096M SPRING TOGGLE BOLTS 1/4" X 4" (X12)

3/4in / 19mm

Variant attributes

SKU

096M

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

081V SPRING TOGGLE BOLTS 1/8" X 2" (X16)

1/2in / 13mm

Variant attributes

SKU

081V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

082V SPRING TOGGLE BOLTS 1/8" X 3" (X16)

1/2in / 13mm

Variant attributes

SKU

082V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

085V SPRING TOGGLE BOLTS 3/16" X 2" (X12)

1/2in / 13mm

Variant attributes

SKU

085V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

086V SPRING TOGGLE BOLTS 3/16" X 3" (X12)

1/2in / 13mm

Variant attributes

SKU

086V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

095V SPRING TOGGLE BOLTS 1/4" X 3" (X6)

3/4in / 19mm

Variant attributes

SKU

095V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

081Y SPRING TOGGLE BOLTS 1/8" X 2" (X4)

1/2in / 13mm

Variant attributes

SKU

081Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

082Y SPRING TOGGLE BOLTS 1/8" X 3" (X4)

1/2in / 13mm

Variant attributes

SKU

082Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

085Y SPRING TOGGLE BOLTS 3/16" X 2" (X3)

1/2in / 13mm

Variant attributes

SKU

085Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

086Y SPRING TOGGLE BOLTS 3/16" X 3" (X4)

1/2in / 13mm

Variant attributes

SKU

086Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

091Y SPRING TOGGLE BOLTS 3/16" X 4" (X3)

1/2in / 13mm

Variant attributes

SKU

091Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

095Y SPRING TOGGLE BOLTS 1/4" X 3" (X2)

3/4in / 19mm

Variant attributes

SKU

095Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

096Y SPRING TOGGLE BOLTS 1/4" X 4" (X2)

3/4in / 19mm

Variant attributes

SKU

096Y

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

098Z SPRING TOGGLES BOLTS 1/4" X 6" (X2)

3/4in / 19mm

Variant attributes

SKU

098Z

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

105N SPRING TOGGLE BOLTS 3/8" X 4" (X2)

Variant attributes

SKU

105N

Anchors Per Pack

Packaging

107N SPRING TOGGLE BOLTS 3/8" X 6" (X2)

Variant attributes

SKU

107N

Anchors Per Pack

Packaging

091V SPRING TOGGLE BOLTS 3/16" X 4" (X12)

1/2in / 13mm

Variant attributes

SKU

091V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

096V SPRING TOGGLE BOLTS 1/4" X 4" (X6)

3/4in / 19mm

Variant attributes

SKU

096V

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

081C SPRING TOGGLE BOLTS 1/8" X 2" BOX

1/2in / 13mm

Variant attributes

SKU

081C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

082C SPRING TOGGLE BOLTS 1/8" X 3" BOX

1/2in / 13mm

Variant attributes

SKU

082C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

083C SPRING TOGGLE BOLTS 1/8" X 4" BOX

1/2in / 13mm

Variant attributes

SKU

083C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

085C SPRING TOGGLE BOLTS 3/16" X 2" BOX

1/2in / 13mm

Variant attributes

SKU

085C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

086C SPRING TOGGLE BOLTS 3/16" X 3" BOX

1/2in / 13mm

Variant attributes

SKU

086C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

091C SPRING TOGGLE BOLTS 3/16" X 4" BOX

1/2in / 13mm

Variant attributes

SKU

091C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

092C SPRING TOGGLE BOLTS 3/16" X 5" BOX

1/2in / 13mm

Variant attributes

SKU

092C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

093C SPRING TOGGLE BOLTS 3/16" X 6" BOX

1/2in / 13mm

Variant attributes

SKU

093C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

095C SPRING TOGGLE BOLTS 1/4" X 3" BOX

3/4in / 19mm

Variant attributes

SKU

095C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

096C SPRING TOGGLE BOLTS 1/4" X 4" BOX

3/4in / 19mm

Variant attributes

SKU

096C

Anchors Per Pack

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

111C SPRING TOGGLE HEADS 1/8" BOX

100

1/2in / 13mm

Variant attributes

SKU

111C

Anchors Per Pack

100

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 75LB/34KG | Shear: 68LB/31KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 98LB/44KG | Shear: 90LB/41KG

Drill size

1/2in / 13mm

Packaging

112C SPRING TOGGLE HEADS 3/16" BOX

100

1/2in / 13mm

Variant attributes

SKU

112C

Anchors Per Pack

100

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 93LB/42KG | Shear: 95LB/43KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 170LB/77KG | Shear: 178LB/81KG

Drill size

1/2in / 13mm

Packaging

113C SPRING TOGGLE HEADS 1/4" BOX

100

3/4in / 19mm

Variant attributes

SKU

113C

Anchors Per Pack

100

Safe Weight Load (LBS) – ½ Inch Drywall

Pull Out: 118LB/53KG | Shear: 118LB/53KG

Safe Weight Load (LBS) – Masonry 3,000 PSI

Pull Out: 175LB/79KG | Shear: 298LB/135KG

Drill size

3/4in / 19mm

Packaging

114C SPRING TOGGLE HEADS 5/16" BOX

Variant attributes

SKU

114C

Anchors Per Pack

Packaging

115C SPRING TOGGLE HEADS 3/8" BOX

Variant attributes

SKU

115C

Anchors Per Pack

The right hardware for every job

Support for your projects

brochures & catalogs

Installation Videos

Installation guides

Technical product specifications

Spring Toggle Bolts

Specifications

Resources

brochures & catalogs

Installation Videos

Installation guides

Technical product specifications

Product variants

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Variant attributes

Packaging

Installation
Videos

Installation
guides

Installation
Videos

Installation
guides
